# Login with QR code (Inji)

{% hint style="success" %}
**Prerequisites:**

* Residents should have the Inji app installed on their mobile devices.
* They should have credentials downloaded and should have activated it for online login. To know how to activate the VC for online login, refer [Inji User Guide](https://docs.mosip.io/inji/inji-wallet/backend-services/mimoto#wallet-binding).
  {% endhint %}

1\. Resident launches the relying party's portal and clicks on ***Sign In with eSignet***.

<figure><img src="https://3349261888-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FylzvZHp30DQ3rNCClELV%2Fuploads%2Fgit-blob-bd9fb62fd90083b58552e802c88f3a41c61b58f0%2FHealth%20services%20home%20page.png?alt=media" alt=""><figcaption><p>Health Portal Home Page</p></figcaption></figure>

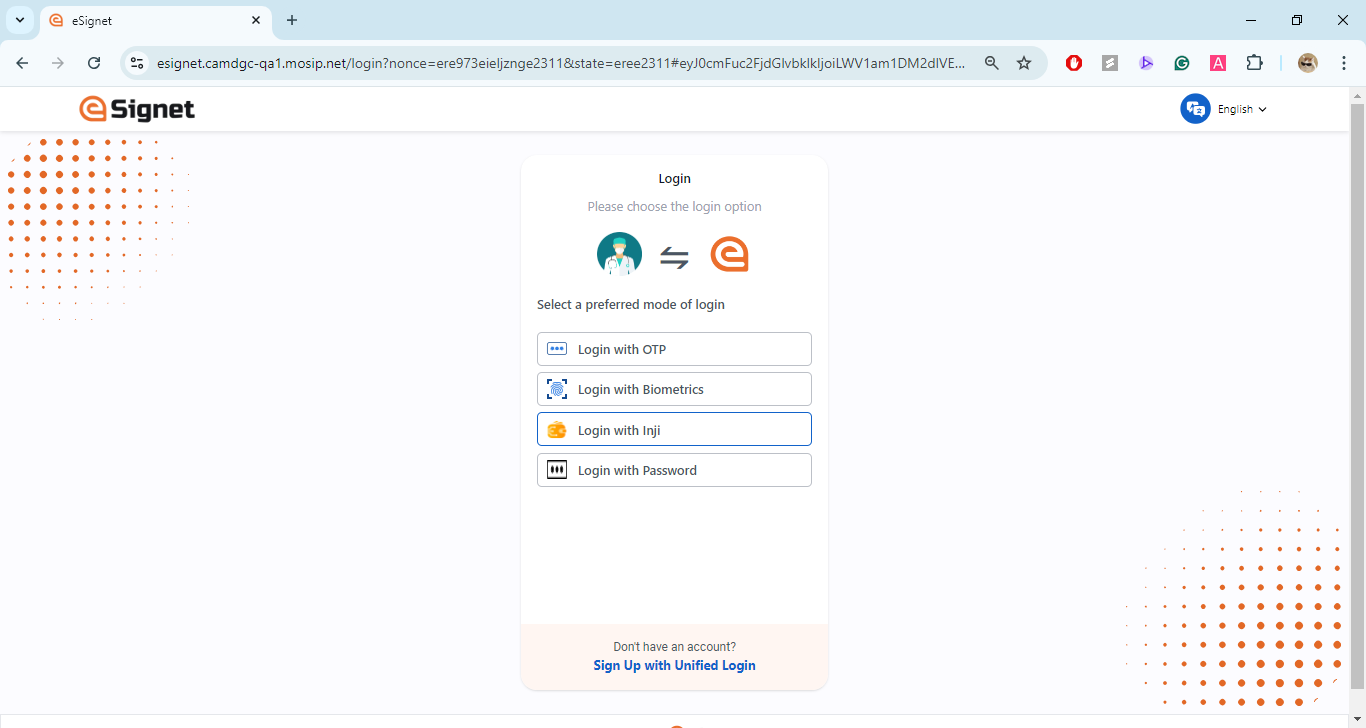

2\. Resident selects the ***Login with Inji Mobile App*** option.

<figure><img src="https://3349261888-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FylzvZHp30DQ3rNCClELV%2Fuploads%2Fgit-blob-b17afba42af8ca6247fc74a8be6fc88bc910039e%2Flogin%20with%20Inji.png?alt=media" alt=""><figcaption><p>Login with Inji</p></figcaption></figure>

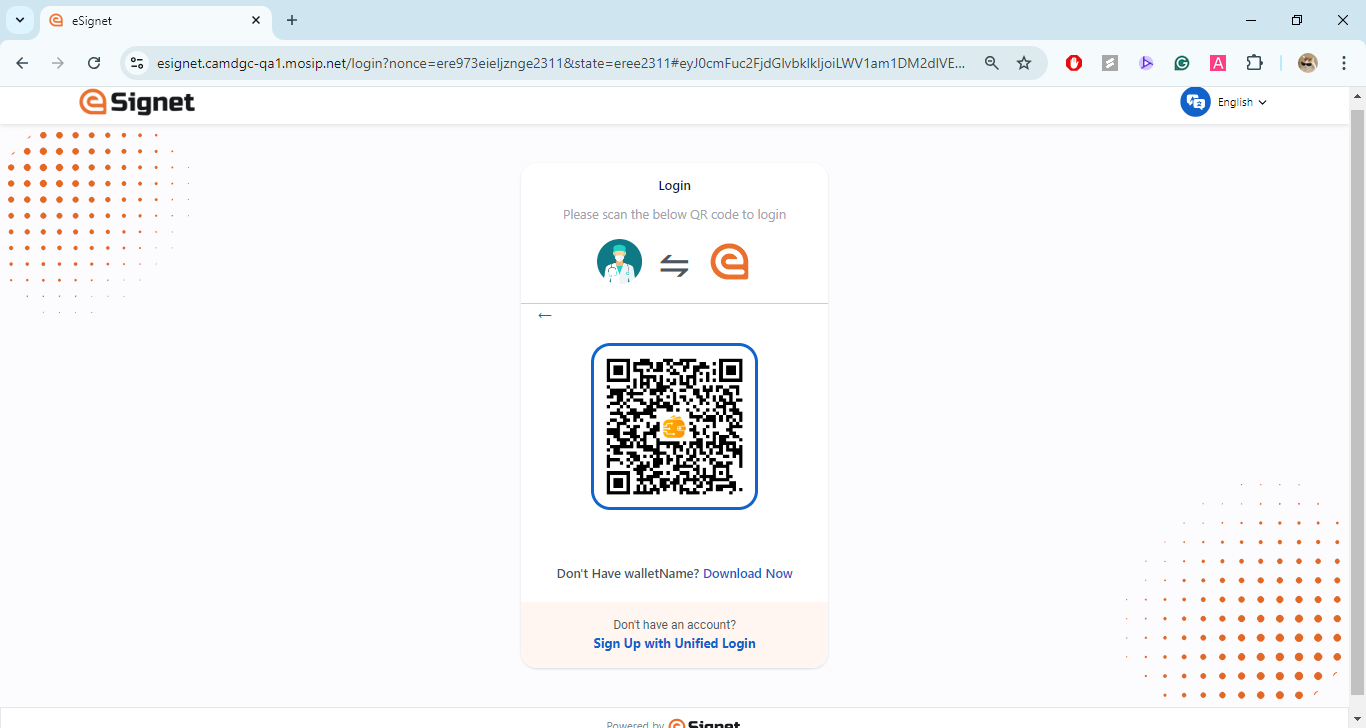

3. Now, the resident can scan the QR code displayed on the portal using Inji (on their mobile device).

<figure><img src="https://3349261888-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FylzvZHp30DQ3rNCClELV%2Fuploads%2Fgit-blob-18fd625e668098fc2b6a3739212ca5f3b73a74a5%2FInji%20scanner.png?alt=media" alt=""><figcaption><p>Inji QR code</p></figcaption></figure>

As seen below, the authentication is in progress.

![](https://3349261888-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FylzvZHp30DQ3rNCClELV%2Fuploads%2Fgit-blob-4cd5a08b053d6921d8c83deb743b8608a0f41372%2Fnew4-esignetlogin-inji-authenticating.png?alt=media)

4. On Inji, the resident can see the VC that is activated for online login. Select the VC and click ***Verify***.

![](https://3349261888-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FylzvZHp30DQ3rNCClELV%2Fuploads%2Fgit-blob-b4bb6964b0d43ebc467599e3d9ba3dbb9c5119b9%2Fesignet-inji1.png?alt=media)

5. After clicking on ***Verify***, the resident is asked to perform face authentication. On successful authentication, the **Consent** screen is displayed.

![](https://3349261888-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FylzvZHp30DQ3rNCClELV%2Fuploads%2Fgit-blob-be5a9607b83c70f6e10cdd432c09044de4e07a1b%2Fesignet-inji2.png?alt=media)

6. Here, the residents can provide their consent and click ***Allow***. A successful message is displayed on Inji.

![](https://3349261888-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FylzvZHp30DQ3rNCClELV%2Fuploads%2Fgit-blob-a64def0da21a78c29f9c9e897758b334bfc51b4e%2F6-consent.png?alt=media)

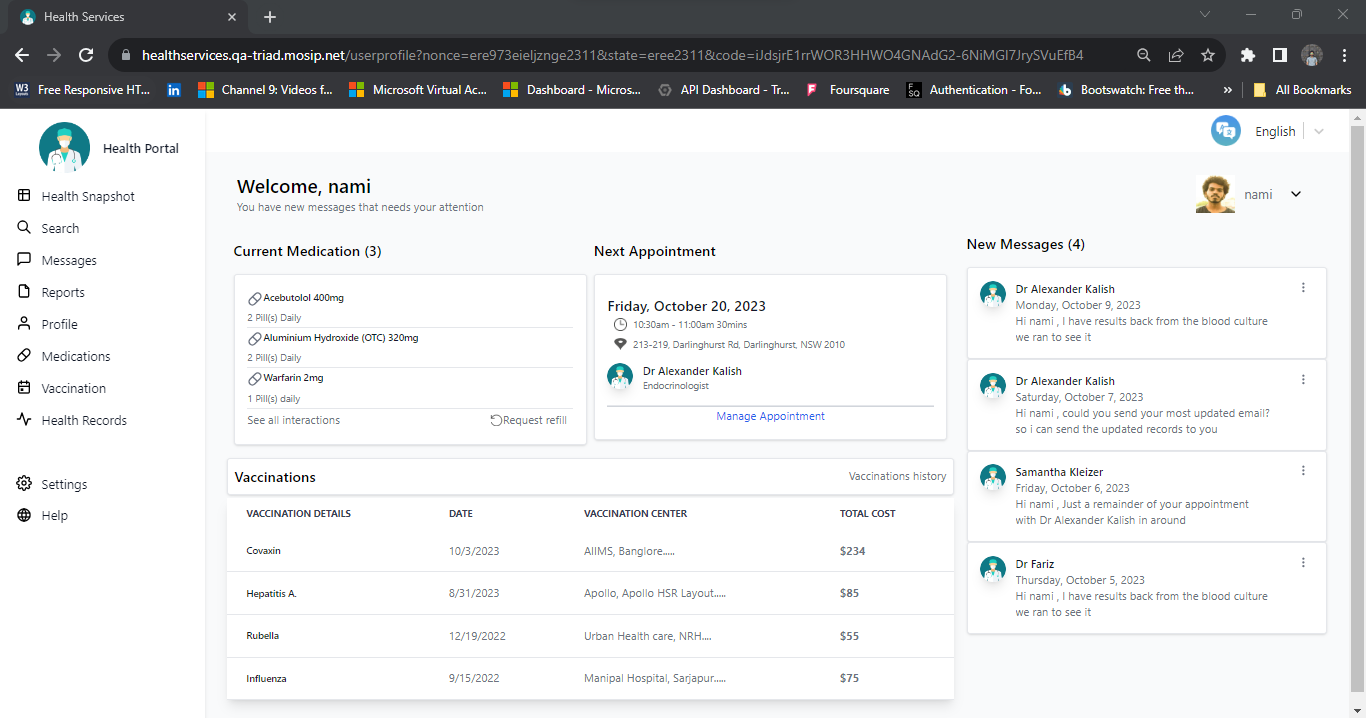

7. The resident can log into the relying party portal and view their details on the user profile page.

<figure><img src="https://3349261888-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FylzvZHp30DQ3rNCClELV%2Fuploads%2Fgit-blob-698744a6e737fd582e1279f8ea508a9902b40e36%2Fnew8-healthServices-user-profile.png?alt=media" alt=""><figcaption></figcaption></figure>
