Test Report

Testing Scope

The scope of testing is to verify fitment to the specification from the perspective of

  • Functionality

  • Deployability

  • Configurability

  • Customizability

Verification is performed not only from the end user perspective but also from the System Integrator (SI) point of view. Hence, the Configurability and Extensibility of the software is also assessed. This ensures the readiness of software for use in multiple countries. Since MOSIP is an “API First” product platform, Verification scope required comprehensive automation testing for all the MOSIP APIs. An automation Test Rig is created for the same.

Test Approach

Persona based approach has been adopted to perform the IV&V, by simulating test scenarios that resemble a real-time implementation.

A Persona is a fictional character/user profile created to represent a user type that might use a product/or a service in a similar way. Persona based testing is a software testing technique that puts software testers in the customer's shoes, assesses their needs from the software and thereby determines use cases/scenarios that the customers will execute. The persona needs may be addressed through any of the following.

  • Functionality

  • Deployability

  • Configurability

  • Customizability

The verification methods may differ based on how the need was addressed.

For regression check, “MOSIP Test Rig” - an automation testing suite - which is indigenously designed and developed for supporting persona based testing. MOSIP Test Rig covers the end to end test execution and reporting. The end to end functional test scenarios are written starting from pre-registration, to creation of packet in registration center, processing the packet through the registration processor, generating UIN and authenticating identity using IDA through various permutation and combinations of cases being covered. MOSIP Test Rig will be an open source artifact which can also be enhanced and used by countries to validate the SI deliveries before going live. Persona classes include both negative and positive personas. Negative persona classes include users like Bribed Registration Office, Malicious Insider etc. The needs of positive persona classes must be met, whereas the needs of negative persona classes must be effectively restricted by the software.

Verified configuration

Verification is performed on various configurations as mentioned below

Default configuration -

  • eSignet with 7 languages (English/Khmer/Hindi/Kannada/Tamil/Arabic/French)

  • Signup with 2 languages (Khmer/English)

Main feature tested:

  • Signup Portal with mock ID

  • Login with Password with mock ID

  • Forgot Password with mock ID

  • Login with OTP with mock ID

  • Login with biometrics with mock ID

  • Login with KBI with mock ID

  • Identity verification process (L2 flow) with mock ID

  • Signup Portal with MOSIP IDA

  • Login with Password with MOSIP IDA

  • Forgot Password with MOSIP IDA

  • Login with OTP with MOSIP IDA

  • Login with biometrics MOSIP IDA

  • Sunbird Plugin with MOSIP IDA

  • Critical and Blocker Bugs verification

  • Docker Compose testing for eSignet and signup (windows, Linux and Mac)

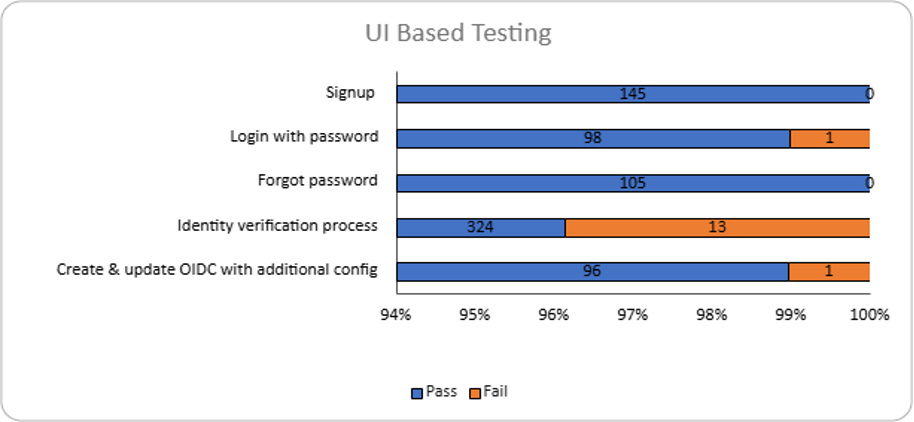

Feature Health

Test execution statistics

Functional test results

Below are the test metrics by performing functional testing using mock MDS, mock Auth and mock ABIS. The process followed was black box testing which based its test cases on the specifications of the software component under test. The functional tests were performed in combination of individual module testing as well as integration testing. Test data were prepared in line with the user stories. Expected results were monitored by examining the user interface. The coverage includes GUI testing, System testing, End-To-End flows across multiple languages and configurations. The testing cycle included simulation of multiple identity schema and respective UI schema configurations.

Total
Passed
Failed
Skipped

3183

3110

38

35

Test Rate: 98% with Pass rate: 98%

Here is the detailed breakdown:

Test cases
Total

API Based Testing - eSignet

2017

Passed

1962

Failed

20

Skipped

35

UI Based Testing

1166

Passed

1148

Failed

18

Skipped

0

API Testrig results for eSignet and Signup with Mock ID:

Test cases
Total

API Based Testrig - eSignet

Total

1011

Passed

93

Failed

0

Skipped

0

Ignored

918

API Based Testrig - eSignet-signup

585

Passed

559

Failed

0

Skipped

0

Ignored

26

API Testrig results for eSignet and Signup with MOSIP ID:

Test cases
Total

API Based Testrig - eSignet

1011

Passed

842

Failed

0

Skipped

0

Ignored

169

API Based Testrig - eSignet-signup

585

Passed

301

Failed

1

Skipped

0

Ignored

283

API Testrig results for eSignet and Signup with Sunbird:

API Based Testrig - Sunbird

1011

Passed

93

Failed

0

Skipped

0

Ignored

918

Detailed Test metrics:

Below are the detailed test metrics by performing manual/automation testing. The project metrics are derived from Defect density, Test coverage, Test execution coverage, test tracking, and efficiency.

The various metrics that assist in test tracking and efficiency are as follows:

  • Passed Test Cases Coverage: It measures the percentage of passed test cases. (Number of passed tests / Total number of tests executed) x 100

  • Failed Test Case Coverage: It measures the percentage of all failed test cases. (Number of failed tests / Total number of test cases executed) x 100

Sonar Report:

Repo Name

Branch Name

Release Version (POM)

Coverage (>80%)

Reliability (0)

Security (0)

Hotspots (0)

Duplications (Less than 3%)

eSigent

release-1.6.x

release-1.6.1

86.2

0

0

0

0%

eSignet Signup

release-1.2.x

release-1.2.1

79.3

0

0

0

0%

esignet-mock-services

release-0.11.x

release-0.11.1

83.3

0

0

0

0%

esignet-plugins(mock-plugin)

release-1.3.x

release-1.3.2

83.0

0

0

0

2.9%

esignet-plugins(mosip-identity-plugin)

release-1.3.2

release-1.3.2

83.6

0

0

0

0%

esignet-plugins(sunbird-rc-plugin)

release-1.3.2

release-1.3.2

83

0

0

0

0%
